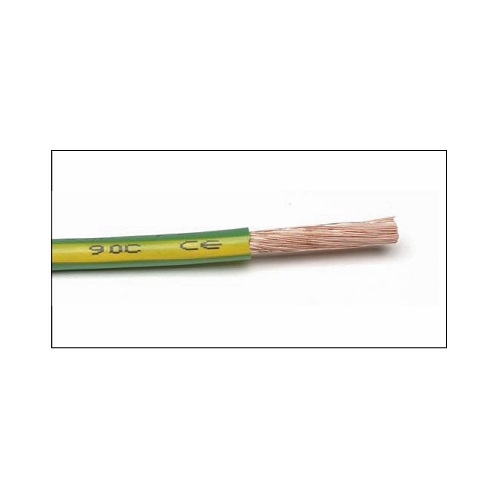

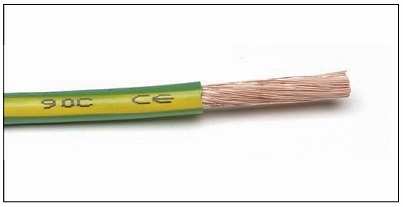

50mm2 single core insulated flexible TPE green/yellow earth cable - per metre

key features & application

  • suitable for swicthboards, flexible droppers from busbars, flexible links, transformers, load banks, generators or anywhere green/yellow flexible earth cables are to be used.
  • conductors of extra fine wires to international standards to ensure maximum flexibility.
  • 06/1kV 95mm2 TPE green-yellow colour copper class 5.
  • RoHS compliant.
  • uv stabilised and flame retardant.

mechanical data

  • standard: AS/NZS 5000.1, AS/NZS 1125, IEC 60332-1, AS/NZS 3808
  • voltage: 0.6/1 kV
  • operating temprature:  -30°C - 90°C (static) - 20°C - 90°C (flexible)
  • maximum conducting temprature:  90°C
  • length: 100 m
  • bending radius: x 5 after install, x 7 during install
  • net weight: 80.7 kg

(AGL050)

SKU AGL050
Brand CMI
Shipping Weight 80.7000kg
Unit Of Measure lgth 01.0m
