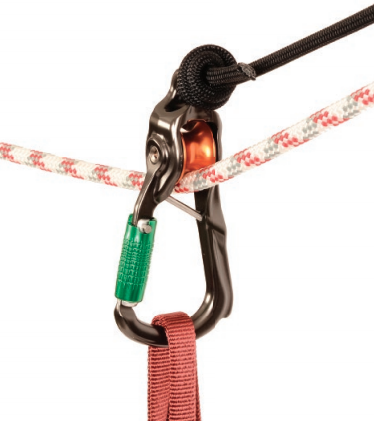

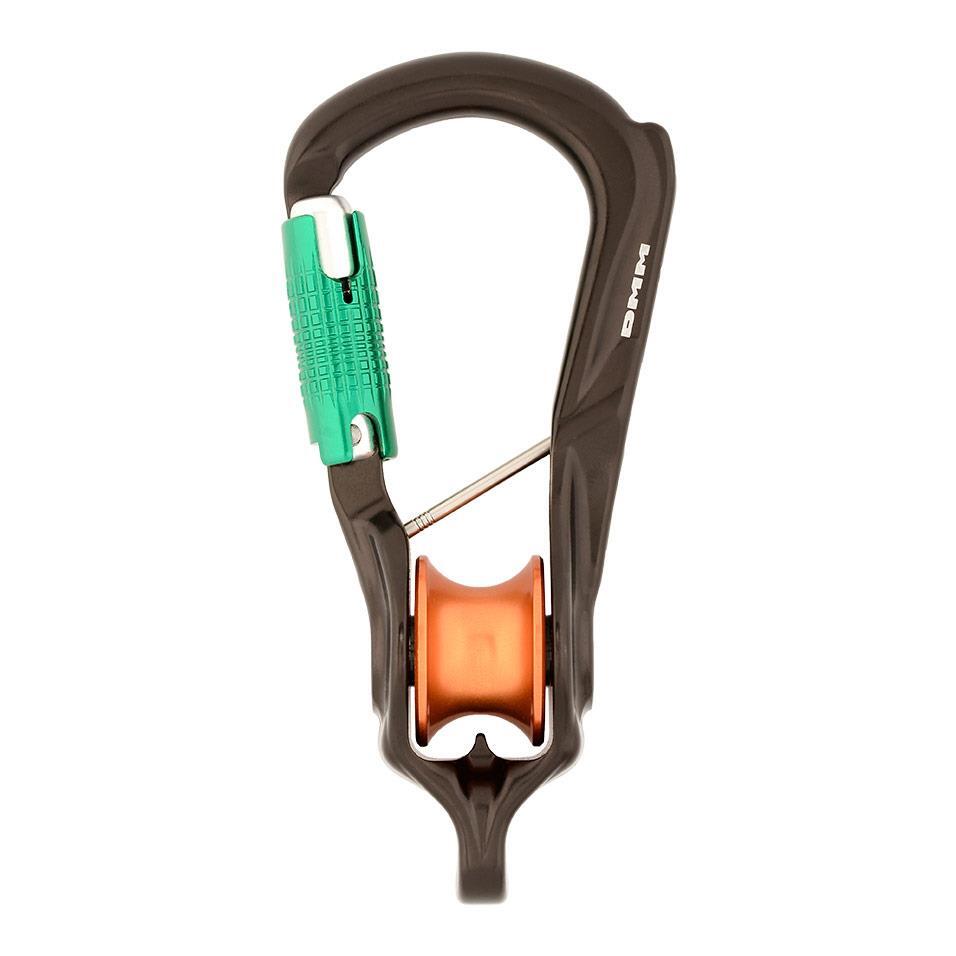

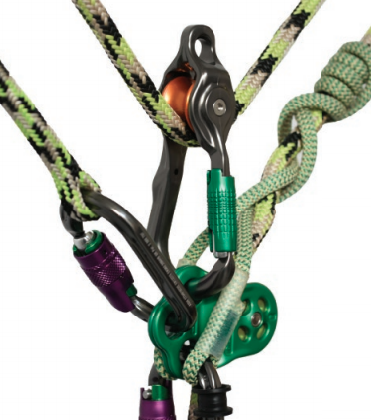

a connector with an integrated pulley sheave. The uniquely profiled spine and captive bar aid in maintaining correct orientation. The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.

features

  • large sheave tread diameter for large bend radius
  • high efficiency roller bearings
  • removable captive bar
  • DMM iD optional
  • keylock nose for snag free operation
  • uniquely profiled spine to aid correct orientation

specifications

  • certification: EN12278:2007 EN362:2004 B/T
  • colour: grey/green
  • mbs major axis: 25 kN
  • mbs minor axis: 7 kN
  • mbs gate open: 7 kN
  • wll: 5 kN
  • dimensions: 76 x 161 mm



(REV5871RIG)

SKU REV5871RIG
Brand DMM
Unit Of Measure Each
