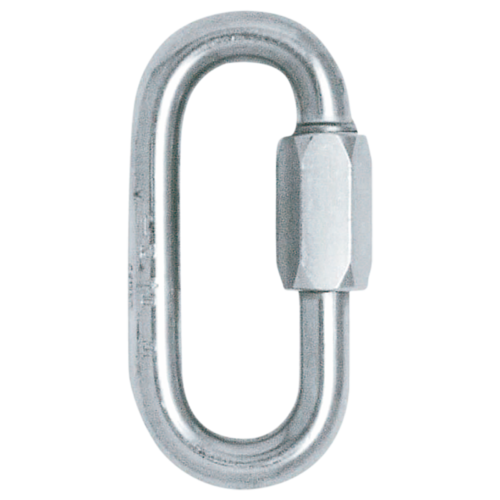

SKYLOTEC OVAL LINK 8 VA screw gate O screw link - 26kN

key features & application

  • the OVAL LINK 8 VA is an oval screw link made of stainless steel with a maximum opening of 15 mm.
  • it has a breaking load of 26kN on the main axis and 10kN on the secondary axis.
  • applications include rope access and rigging.

mechanical data

  • standard: EN 362-Q:2004
  • breaking load, major axis: 26kN
  • breaking load, minor axis: 10kN
  • max opening: 15mm
  • size: 88 x 35mm
  • weight: 90g
  • locking system: screw-lock
  • material: stainless steel
  • max service life: 30 years
  • max number of persons: 1

[datasheet]

[declaration of conformity]

(H-320-08)

SKU H-320-08
Brand SKYLOTEC
Unit Of Measure Each
